This product complies with AQG 324 and applicable IEC industrial standards.
Product Applications:
High-Frequency Switching Applications
DC/DC Converters
Motor Drive Systems
Uninterruptible Power Supplies (UPS)
Scroll down to see more ↓
Specifications :

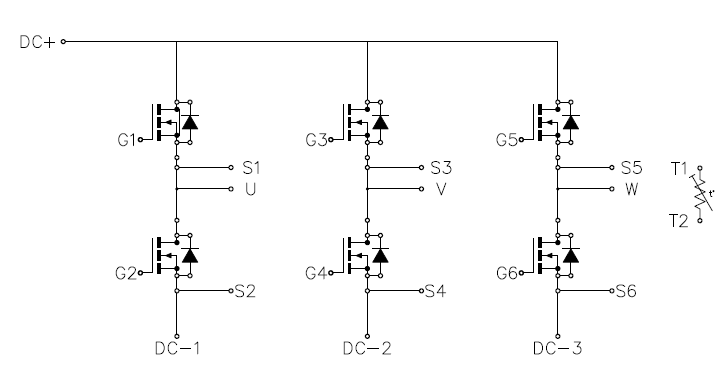

-SixPACK with NTC
-Silicon Carbide MOSFET
-Full Bridge
-Vds=1200V
-Id=25 A
-Ron typical 33 mohm
-Use high performance ZTA substrate
-PressFit contact design
-Tvj=175℃
* Contact us for the datasheet.
• Electrical features
- V DSS = 1200 V
- IDN = 25 A / I DRM = 50 A
- Low inductive design
- Low switching losses
• Mechanical features
- Rugged mounting due to integrated mounting clamps
- Press FIT contact technology
- Integrated NTC temperature sensor
• High-frequency switching application
• DC/DC converter
• Motor drives
• UPS systems
